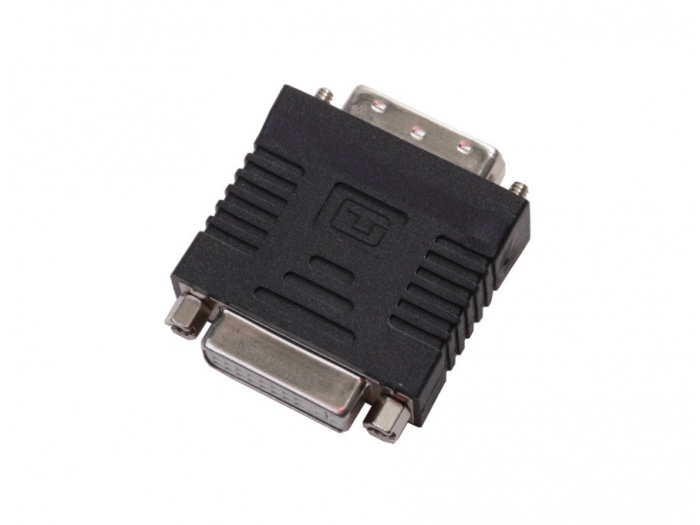

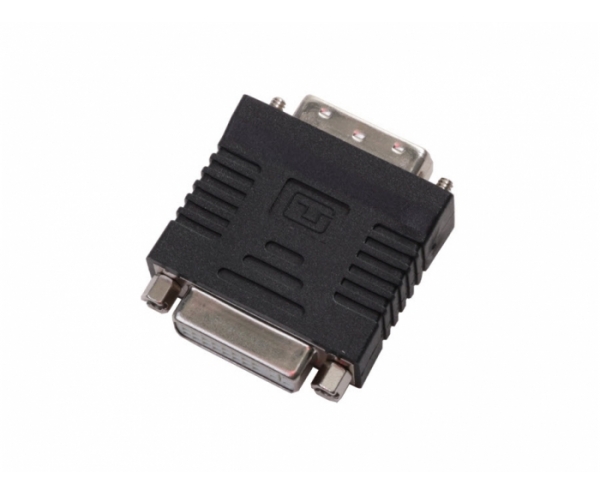

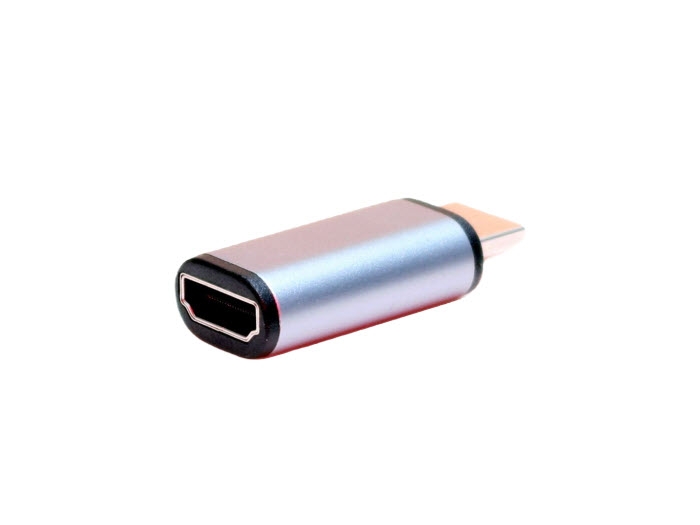

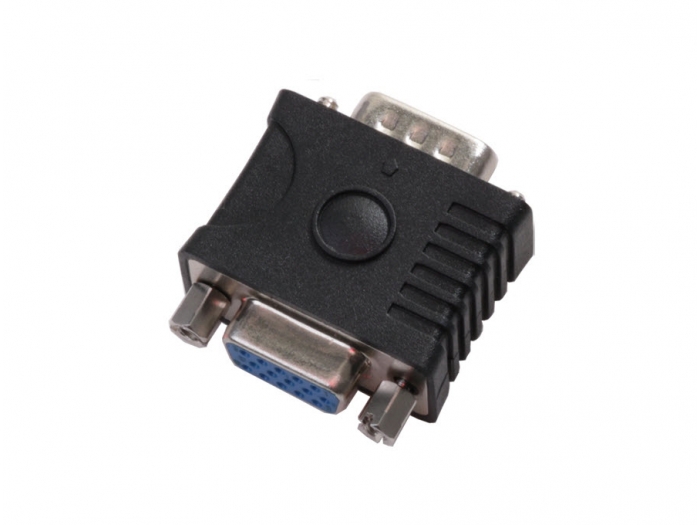

這一系列 EDID 模擬器 ( VGA / DVI / HDMI )，能模擬螢幕型號，解決大部分因 EDID 不正確時所造成的問題。
產品特色
EDID 模擬：
● 模擬 EDID 訊息，確保顯示最佳解析度的影像。
● 模擬器內建一組通用的 EDID 。
-sys.jpg)
產品預設的EDID/DDC數據
| EDID/DDC Emulator (VGA) | EDID/DDC Emulator (DVI) | EDID/DDC Emulator (HDMI) |
| 640x480@60Hz | 640x480@60Hz | 640x480p@60Hz |
| 640x480@67Hz | 640x480@75Hz | 640x480p@67Hz |
| 640x480@72Hz | 720x400@70Hz | 640x480p@72Hz |
| 640x480@75Hz | 800x600@60Hz | 640x480p@75Hz |
| 720x400@70Hz | 800x600@75Hz | 720x400p@70Hz |
| 800x600@56Hz | 800x600@85Hz | 720x480i@60Hz |
| 800x600@60Hz | 832x624@75Hz | 720x480p@60Hz |
| 800x600@72Hz | 1024x768@60Hz | 720x576i@50Hz |
| 800x600@75Hz | 1024x768@75Hz | 720x576p@50Hz |
| 832x624@75Hz | 1024x768@85Hz | 800x600p@56Hz |
| 1024x768@60Hz | 1152x720@60Hz | 800x600p@60Hz |
| 1024x768@70Hz | 1152x870@75Hz | 800x600p@72Hz |
| 1024x768@75Hz | 1280x800@60Hz | 800x600p@75Hz |
| 1152x864@75Hz | 1280x960@60Hz | 800x624p@75Hz |
| 1152x870@75Hz | 1280x1024@60Hz | 1024x768p@60Hz |
| 1280x720@60Hz | 1280x1024@75Hz | 1024x768p@70Hz |
| 1280x960@60Hz | 1280x1024@85Hz | 1024x768p@75Hz |
| 1280x1024@60Hz | 1440x900@60Hz | 1152x864p@75Hz |
| 1280x1024@75Hz | 1440x900@75Hz | 1152x870p@75Hz |
| 1440x900@60Hz | 1680x1050@60Hz | 1280x720p@50Hz |
| 1600x1200@60Hz | 1280x720p@60Hz | |
| 1680x1050@60Hz | 1280x960p@60Hz | |
| 1920x1080@60Hz | 1280x1024p@60Hz | |
| 1280x1024p@75Hz | ||
| 1440x900p@60Hz | ||
| 1400x1050p@60Hz | ||
| 1600x1200p@60Hz | ||
| 1680x1050p@60Hz | ||
| 1920x1080p@24Hz | ||
| 1920x1080p@30Hz | ||
| 1920x1080i@50Hz | ||
| 1920x1080p@50Hz | ||
| 1920x1080i@60Hz | ||
| 1920x1080p@60Hz |
